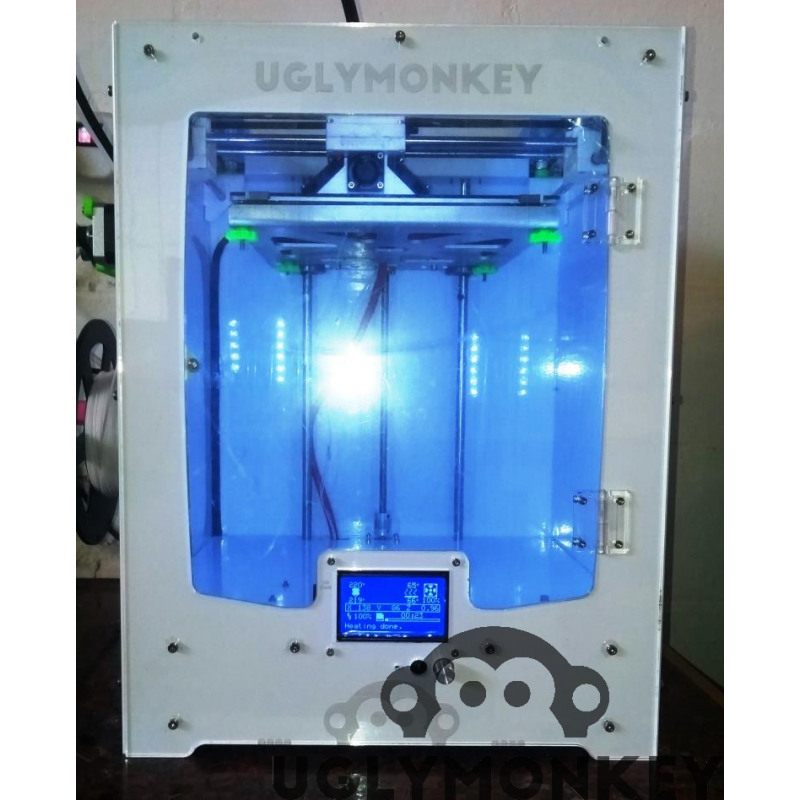

Uglymonkey MiNimo View larger
Previous Next

Uglymonkey MiNimo

Uglymonkey MiNimo

New product

  • Full Metal Frame Powder coated in white.
  • Print Volume: 220X225X255mm
  • Full Graphics LCD
  • Computer Free Printing via SD-Card
  • Print with PLA only
  • 0.4m Nozzle (0.2, 0.3, 0.5, 0.6, 0.8 Available)
  • PTFE lined Hotend max Temp 250 Degrees Celsius
  • 1.75mm Filament Used

More details

This product is no longer in stock

R9,499.95

More info

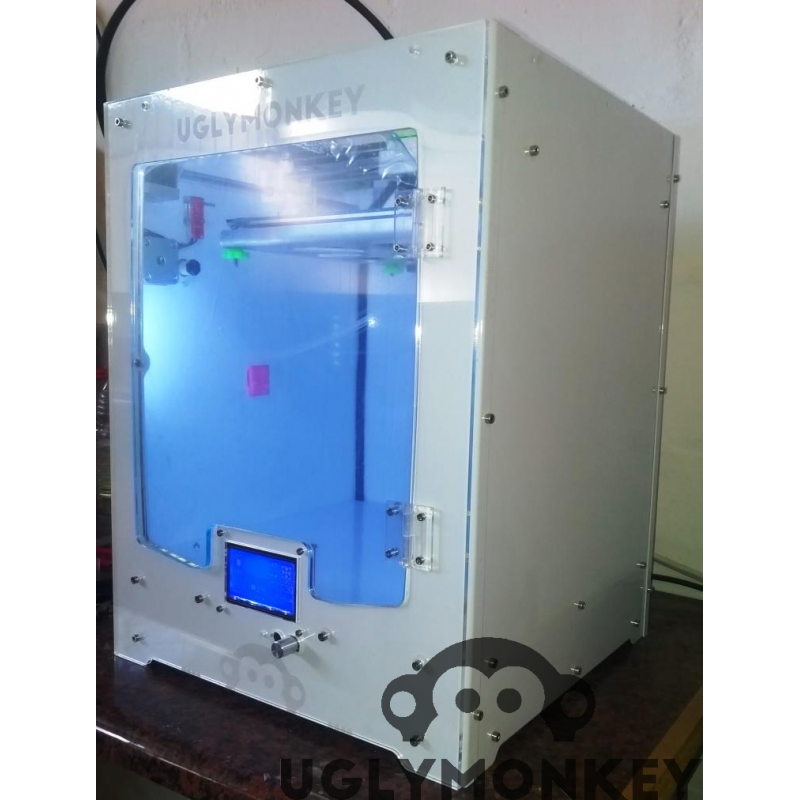

The Uglymonkey MiNimo 3D printer for beginners and home use is aimed at the hobbyist market with a solid Steal frame all round. Still get the same quality as the Uglymonkey Touch and Pro machine but with no heated print platform. With a max resolution of 20Microns layer height, you have a world of options to play around. The accuracy of the printer is 6.25micron in the X and Y position. Giving you super accurate prints.

Printer and printing properties

Assembly type

Pre-assembled Ready to print out the Box, Steal Enclosed build area for better printing results

The Uglymonkey MiNimo is an out of the box experience and immediately ready to use, as it comes pre-assembled.The complete machine is steal framed then powder coated in a UV resistant white that will never go yellow. we can also do a custom machine your your favourite colours.

No need to play around with a DIY Kits and weeks wasted on calibrating and modifying the machine to give repeatable results.

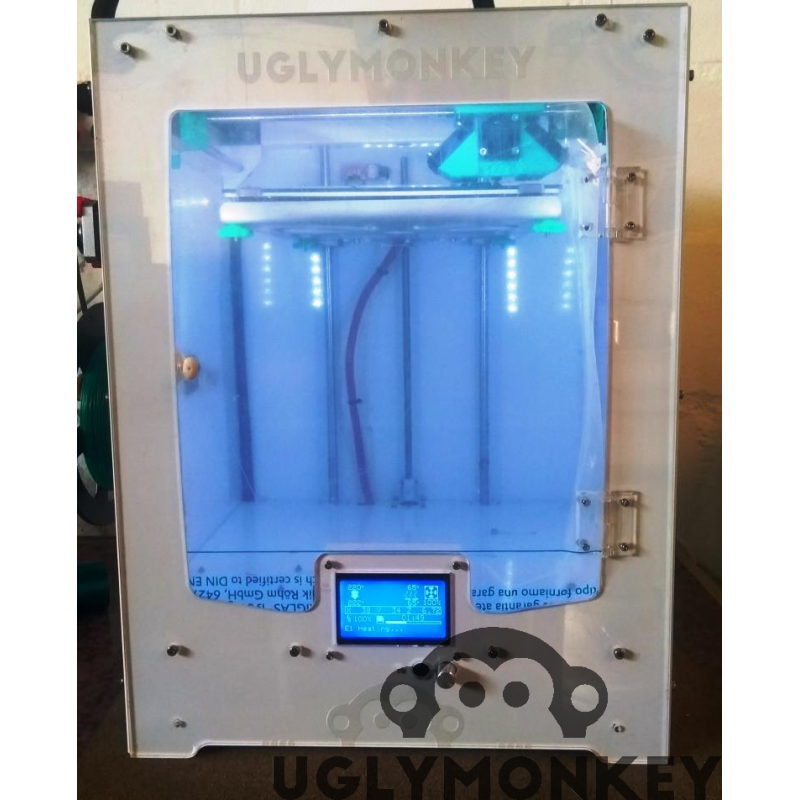

Display Type

Uglymonkey MiNimo comes with a Full Graphical Screen for a Computer free printing experience.

The Controller gives you access to all the printer adjustments, even while the printer is printing you can go and adjust temperatures and flow rates.

Know what your Printer is up to with Live Temperature readings of the Hotend, the estimated time left for print to complete and many more functional settings.

Communication

The Uglymonkey MiNimo comes with a USB connection, This option is for the old school guys that want to print direct from the Computer.

We don't recommend this method as it can cause bad prints. That's why we added a SD-Card Reader to print direct of the Memory card.

A standard 16Gig Memory Card is supplied with every Uglymonkey MiNimo printer.

No more USB time outs or computers going to sleep and canceling your prints.

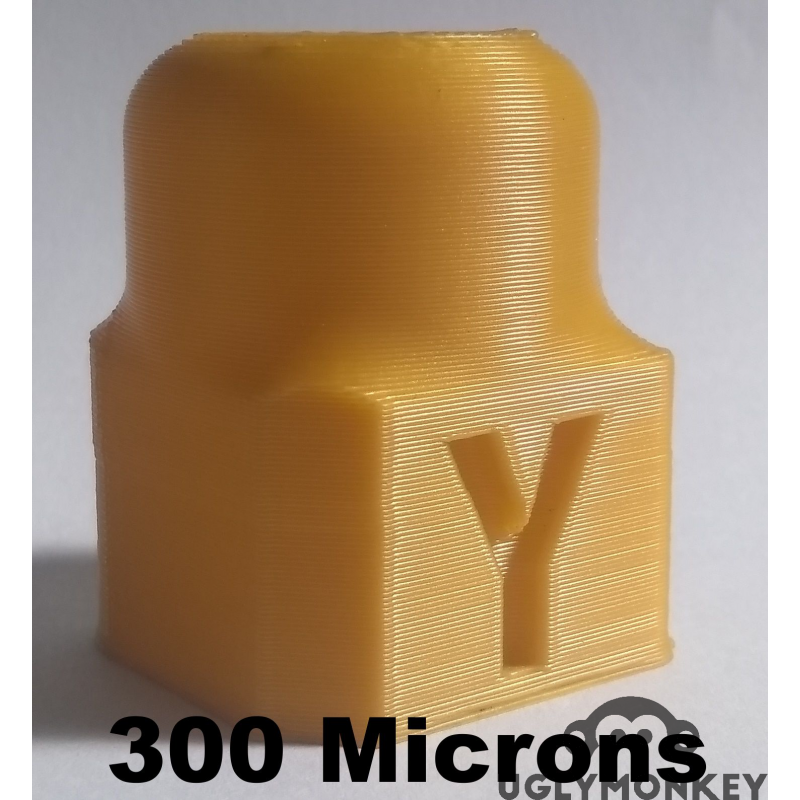

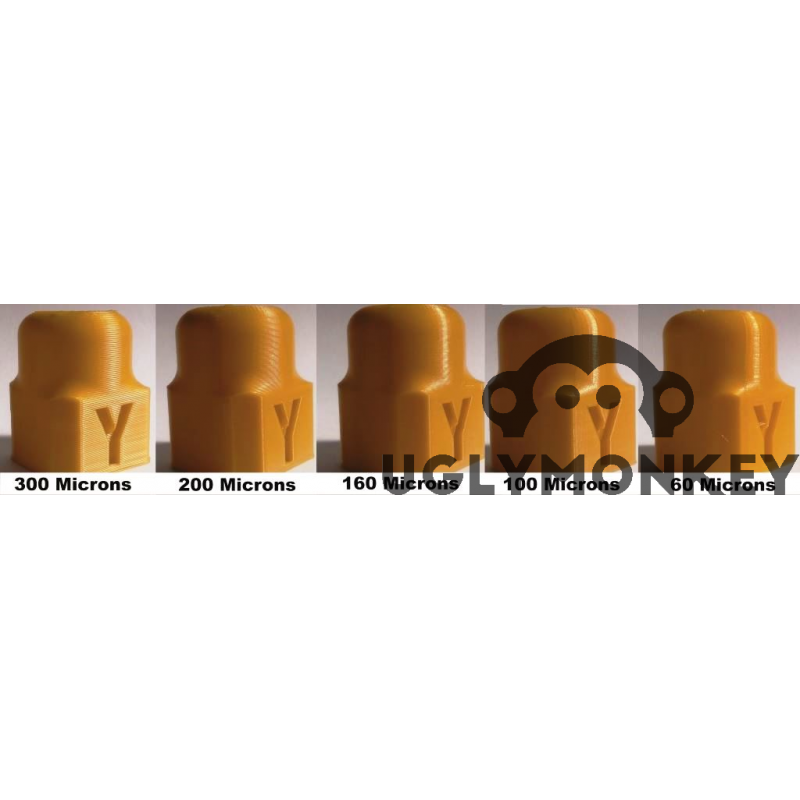

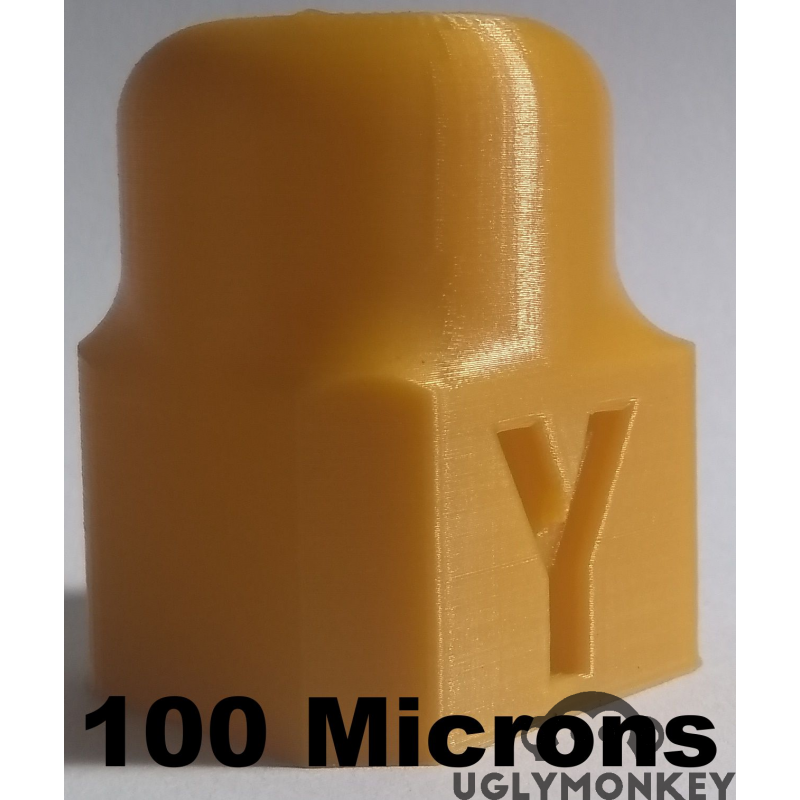

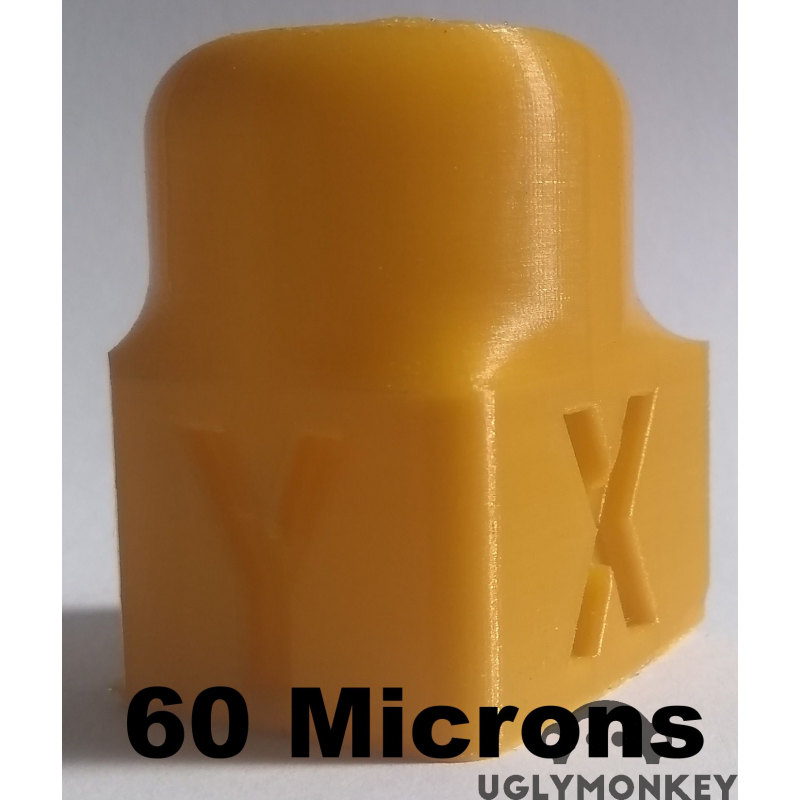

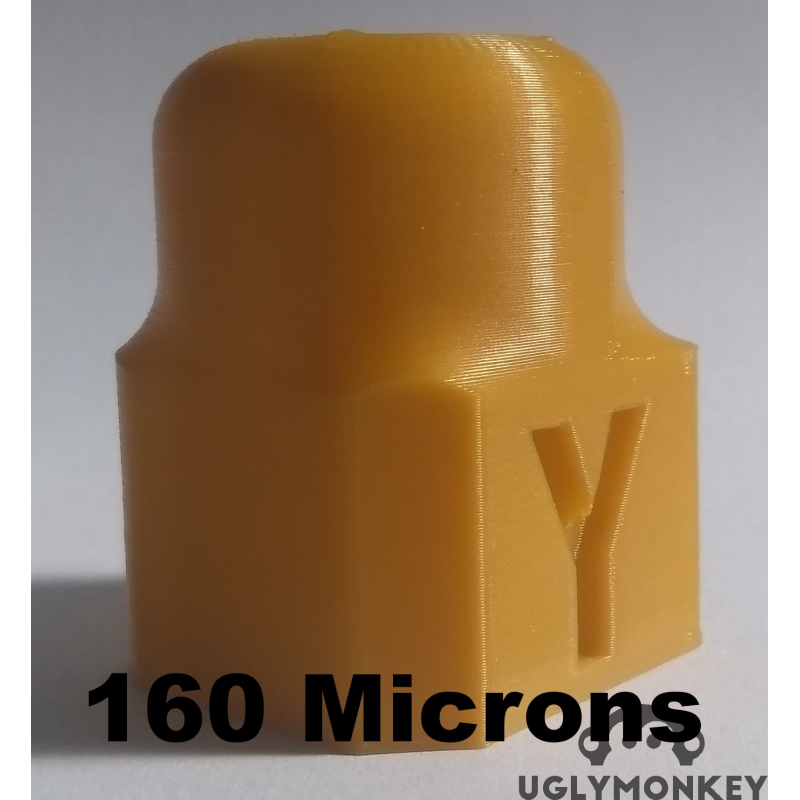

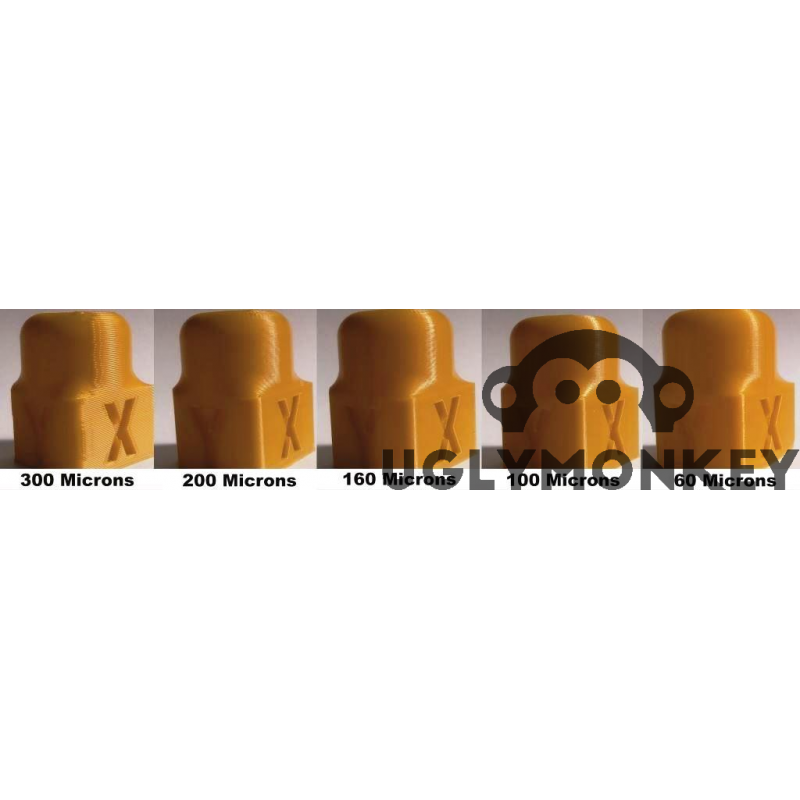

Layer Resolution

0.25 mm nozzle: 160 to 20 micron
0.40 mm nozzle: 260 to 20 micron
0.60 mm nozzle: 400 to 20 micron
0.80 mm nozzle: 600 to 20 micron
A micron is the measurement used to define the thickness of a 3D printed layer. 20 microns is 0.02 mm thick. 600 microns is 0.60 mm. Thinner layers are used for high detailed prints, thicker layers are great for fast prototypes.

Build plate

Print directly on the Uglymonkey build plate. Replaced by removing the old buildtak sheet and re-applying the new build platform.
Find a replacement sheet here.

Build plate leveling

Assisted leveling process
It’s really easy to level the build plate using the printer's assisted leveling process.
The print head automatically moves to the back of the build plate, after which the user turns the matching knob and uset the right height.
The print head will continue to the front left side, and then the front right side.
This process is repeated once, after that you'll have a perfectly leveled bed which will stay leveled for a really long time thanks to the sturdy build of the build plate.

Build Volume

The Uglymonkey MiNimo can print 220mm X 225mm X 255mm

That is 33% Larger than the average 3D printer out there.

Uglymonkey Print Volume

3D Printer Footprint.

382x385x500mm with no filament spool holder installed. Small and can be installed on any standard table.

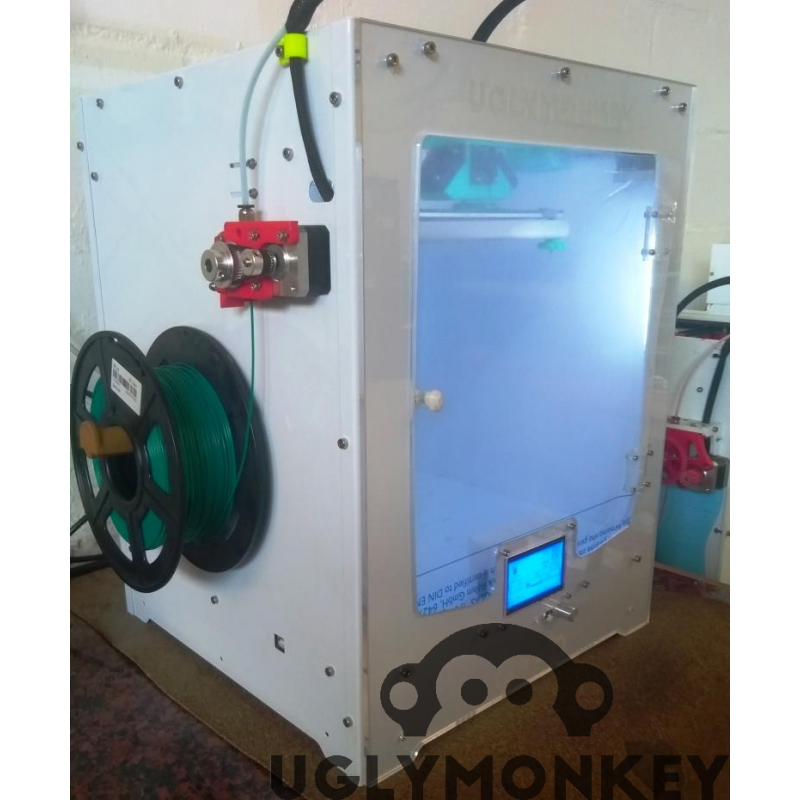

480x385x500mm with filament holder attached on the left hand side.

Uglymonkey foorprint

Print technology

Fused Deposition Modeling (FDM) This is the process of depositing layers of filament, one on top of the other, to build up shapes and models. Also known as additive manufacturing technology, it’s the process used by all Uglymonkey 3D printers.

Print head

Swappable nozzles are available
Thanks to the swappable nozzle, you can quickly switch between different nozzles.
The standard is 0.4 mm, but you also have the option to use a 0.25 mm nozzle for detailed prints or a 0.6 mm/0.8 mm for faster prints.
The cooling Fans ensure the airflow is aimed perfectly below the nozzle and equally from both sides, The  Sunon fans are more silent than ever.
The heater cartridge is now 40W which improves heat up times and print speeds.
The PTFE isolator is made from Stainless Steel, which has a longer life span.

Build speed

Calibrated to work optimally between 10- 60 mm/s print speeds
The build speed relates to how fast the filament can be extruded through the hot end of the printer. The higher the mm³/s the greater the achievable print speed. Up to 24 mm³/s is industry-leading for a desktop 3D printer.

Print head travel speed

10 to 60 mm/s Travel Speed
Its not the fastest but will make sure it always give the best result possible.
Travel speed relates to how quickly the print head can move.

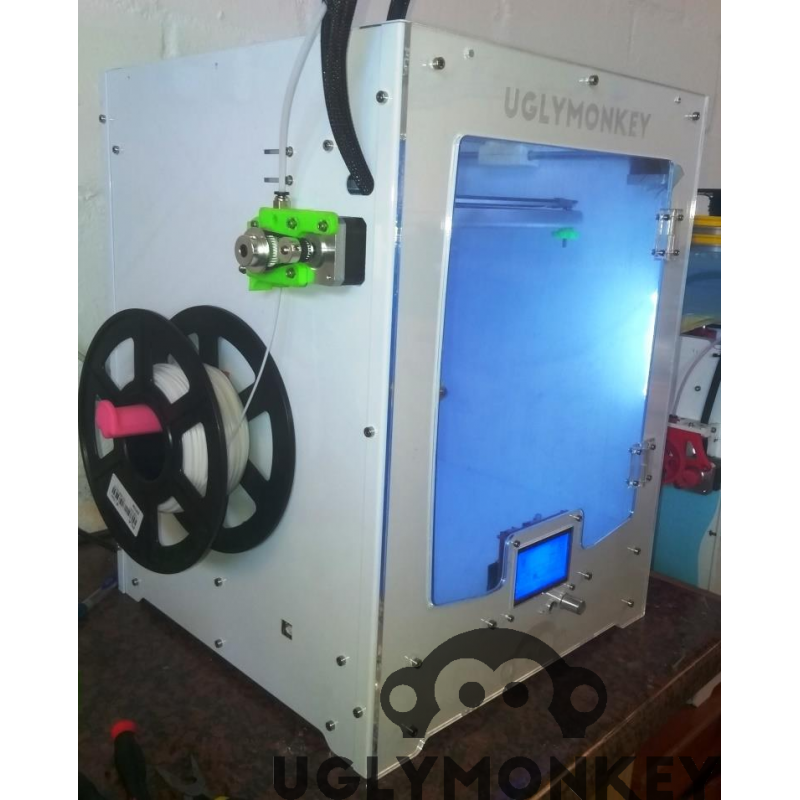

Feeder type

A Custom designed belt driven feeder for 1.75mm filament. Its the same feeder as the Pro machines giving you the exact same quality.
With a belt driven feeder you have much better control on the feed rate of your filament. This means, more accuracy and better quality prints.

XYZ accuracy

With an amazing 6.25, 6.25, 5 microns accuracy
The more accurate the stepper motors within the printer, the greater degree of accuracy can be achieved with each print.
Our motors are engineered and tested to achieve the very highest accuracy and torque.

Nozzle diameter

Included Nozzle is 0.4mm
Nozzle temperature
170 °C to 250 °C

Nozzle heat up time

On average around 90 seconds.
With an even more powerful 40W heater cartridge the Uglymonkey nozzle heats up really fast allowing you to start printing in no time.
It also means that prints can be completed much faster as it can melt the plastic faster.

Build plate heat up time

The Uglymonkey MiNimo does not have a heated build plate. Perfect for low energy setups.

Usable Materials

Uglymonkey PLA only.

This ensures you get the optimum results on every print.

Filament diameter

1.75 mm

When purchasing filaments for your Uglymonkey 3D printer, you must buy 1.75mm diameter filament – this is the optimal size for your Uglymonkey.

Supported materials

PLA,

Flexible (TPU)

Uglymonkey MiNimo only prints in PLA and Flex.

Filament recommendations

We recommend Uglymonkey PLA for the best results

Requirements

Software

Cura, Repetier, Simplify 3D, KISSlicer any Slicing programs you enjoy.

We supply Cura with your Uglymonkey 3D printer and pre-configured settings.

Supported OS

Free on macOS, Windows and Linux Repeteir works seamlessly on macOS, Windows and Linux.

Supported file types

STL, OBJ and AMF An STL file is the most used file type for 3D printing.

Nearly any 3D modeling software program is able to create these files.

File transfer

Standalone 3D printing from SD card (included) Simply copy the .gcode file that Cura created for you onto the supplied SD card and insert it into your Uglymonkey 3d Printer. No computer connection required during printing.

Operating ambient temperature

15 °C to 32 °C  Your Uglymonkey operates at its best at these temperatures.

Input Power

220- 240V
1A Max,
45 Watt maximum Power Consumption.

Output

12 Volt DC,

4 Amps Max
